CM Hall Headlamp

C.M. Hall Headlamps for Early 9N's (1939-1942)

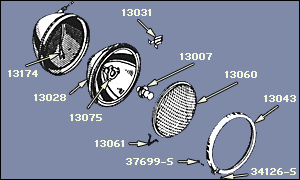

Parts
Headlamp Ground Wire (9N 13174)
Headlamp Bucket (housing)
Headlamp Reflector (9N 13028)
Reflector Spring (9N 13031)
Headlamp Socket Assy. (9N 13075)
Headlamp Bulb (9N 13007)
Lens Retaining Spring (9N 13061)
Headlamp Lens (9N 13060)
8-32 Fillister Hd Screw (37699-S)
Headlamp Bezel (9N 13043)
8-32 Nut (34126-S)

The 1939-1942 Ford 9N's had "Tractor Lite" headlamps made by C.M. HALL. They consisted of a 7-1/4 O.D. cone shaped housing, a painted bezel, a nickel plated reflector, bulb holder, non-sealed beam bulb, lens with the words "C.M.HALL AMP CO. DETROIT MICH TRACTOR LITE" embossed in the center of Click for larger view of headlamp differencesthe lens, and three wire clips to hold the lens in the bezel. Ford started making headlamps in 1943 that were 6" in diameter and were sealed beam units. Some were stamped with "Tract-O-Lite" and some were not. It's not known when the "Tract-O-Lite" logo was first stamped into the lights nor how long Ford made headlamps. It was believed that Ford made headlamps up to the 1950 8N model.

Photos by "Bill Foshay", a.k.a. Truck

Front view of headlamp Back view of headlamp Back view #2 of headlamp Bottom view of headlamp Side view of unassembled headlamp
Front View
Assembled		 Back View
Assembled		 Back View #2
Assembled		 Bottom View
Assembled		 Side View
Unassembled
Shim
Headlamp housing Headlamp parts Headlamp w/o lens Headlamp lens (front)
Top View
Assembled		 Headlamp
Housing		 Headlamp
Parts		 Headlamp
w/o lens		 Headlamp Lens
(Front)
Shim
Headlamp lens (back) Headlamp reflector Headlamp lens attaching lug Special screw to attach the lens retainer to the lamp Headlamp bulb

Headlamp Lens
(Back)

 Headlamp
Reflector		 Headlamp
Lug		 Lens Retainer
Attaching Screw		 Headlamp
Bulb
Shim
